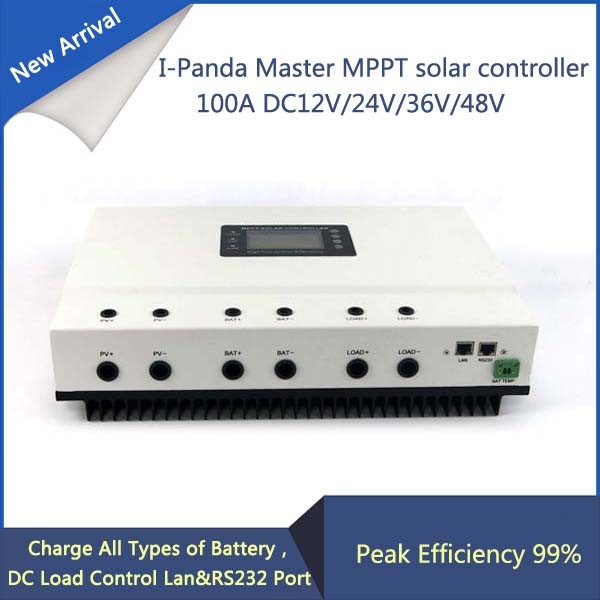

LCD 100A mppt solar charge controller 12V 24V 36V 48V 100A PV regulator charge Solar Battery with Rs232 Lan 5KW system
This is a max. power point tracking function with high efficiency MPPT charge controller. It has many advantages such as self cooling, system voltage auto recognition, wide rang of PV input ,charge for all kinds of batteries, automatic discharge control, RS 232 / LAN communication function and so on. It is the most high-end product in solar market.
1.MPPT charge mode,conversion efficiency up to 99%
2.12V/24V/48V battery system automatic recognition,convenient for users.
3.Maximum PV input voltage up to DC150V .
4. Controllers can be connected in Unlimited parallels
5.Memory function, to save the setting, date, time, generating capacity and so on .
6.Charge mode: three stages (fast charge ,constant charge ,floating charge). To extend the life span of the battery
7.Discharge mode: ON/OFF mode, double time control mode,PV voltage control mode ,PV voltage+time delay mode and so on .
8. Recommended battery types: sealed lead acid, vented, gel, NiCd battery. Other types of the batteries can also be defined, such as lithium battery etc.

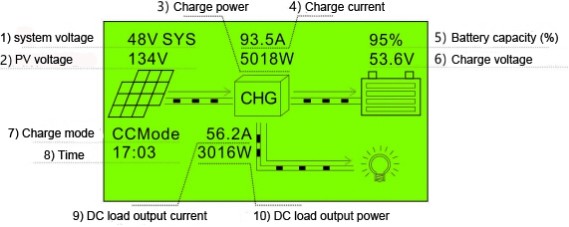

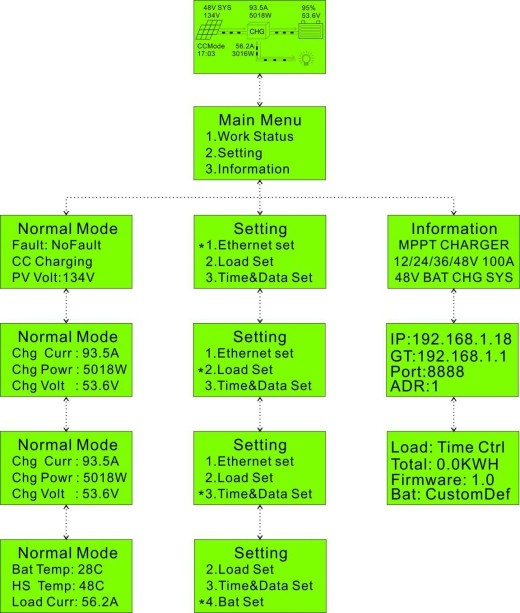

9.Most information could be provide by LCD and LED like: model no.,PV input voltage,battery type,battery voltage,charging current,charging power,working status and so on. Also customer's information like company name,website and logo can be added to Solar Eagle software.
10.RS232 and LAN communication port. IP and Gate address could be defined by the users and it can be used all around the world.And communication protocol can be provided to help customer manage all information .

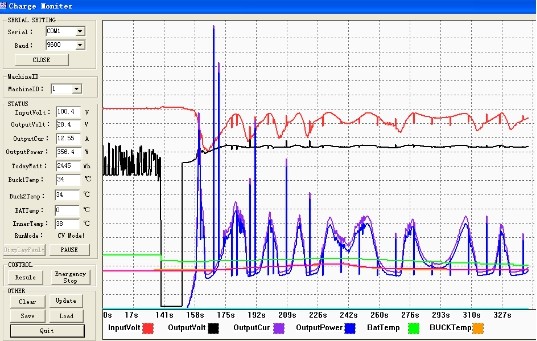

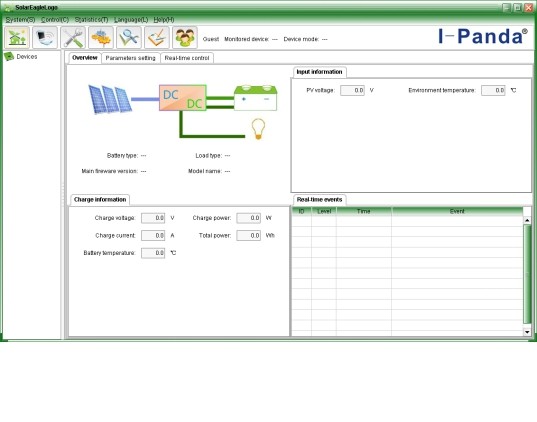

11.Provide professional upper computer software, it could show work status and set parameters of the discharge system.
12.With intelligent design, customers can enjoy a lifelong upgrade online service
13.Adopting the well-known brand components,the devices can suffer the temperature not less than 105Cdegree.The lifespan is designed to use for 10 years in theory.
14.Compliance with the 2002/95/EC environment protecting demand, doesn't include the cadmium, hydride and fluoride etc .
15.CE,ROHS,FCC certifications approved, other certifications can also be made based on different requirements.
16. 2 years warranty and 3~10 years extended technical service.

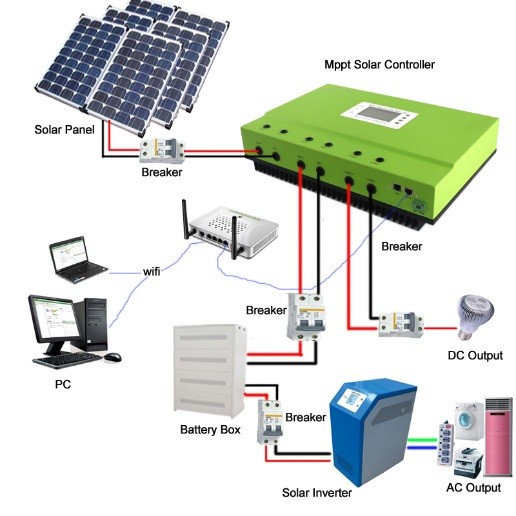

1) Solar off-grid energy generation system
2) Solar energy/utility power complementary power generation system
1.Software working parameters
Software
|
MPPT controller Model:
Master-80A/100A series
|
80A
|
100A
|
|
Charge Mode
|
Maximum Power Point Tracking
|
|
Method
|
3 stages: fast charge(MPPT),constant voltage, floating charge
|
|
System Type
|
DC12V/24V/36V/48VSYS
|
Automatic recognition
|
|
Soft Start Time
|
DC12V/24V/36V/48VSYS
|
≤10S
|
|
Conversion Efficiency
|
DC12V/24V/36V/48VSYS
|
≥96.5%,≤99%
|
|
PV Modules Utilization Rate
|
DC12V/24V/36V/48VSYS
|
≥99%
|
|
12V system recognize batteries Voltage Range
|
DC9V~15V
|
|
24V system recognize batteries Voltage Range
|
DC18V~28V
|
|
36V system recognize batteries Voltage Range
|
DC32V~40V
|
|
48V system recognize batteries Voltage Range
|
DC42V~60V
|
|
Error system
|
The battery voltage is not in above range when the controller is switched on
|
|
PV Input Characteristics
|
|
MPPT Working Voltage and Range
|
12V system
|
DC16V~DC150V
|
|
24V system
|
DC30V~DC150V
|
|
36V system
|
DC45V~DC150V
|
|
48V system
|
DC60V~DC150V
|
|
Low Voltage Input Protection Point
|
12V system
|
DC22V
|
|
24V system
|
DC34V
|
|
36V system
|
DC50V
|
|
48V system
|
DC65V
|
|
Input Overvoltage Protection Point
|
DC12V/24V/36V/48VSYS
|
DC150V
|
|
Low Voltage Input Recovery Point
|
DC12V/24V/36V/48VSYS
|
DC145V
|
|
Max. PV Power
|
12V system
|
1136W
|
1420W
|
|
24V system
|
2272W
|
2840W
|
|
36V system
|
3408W
|
4260W
|
|
48V system
|
4544W
|
5680W
|
|
Discharge characteristic
|
|
Selectable Battery
|
DC12V/24V/36V/48VSYS
|
Sealed lead acid, vented
|
|
Types (Default
|
Gel, NiCd battery
|
|
type is GEL battery)
|
(Other types of the batteries also can be defined)
|
|
Charge mode
|
DC12V/24V/36V/48VSYS
|
constant current-constant voltage-floating charge
|
|
Constant Voltage
|
DC12V/24V/36V/48VSYS
|
Please check the charge voltage according to the battery type form.
|
|
Floating Charge Voltage
|
DC12V/24V/36V/48VSYS
|
|
Rate charge current
|
DC12V/24V/36V/48VSYS
|
80A
|
100A
|
|
Current-limiting Protection
|
DC12V/24V/36V/48VSYS
|
85A
|
105A
|
|
Temperature Factor
|
DC12V/24V/36V/48VSYS
|
±0.02% / Cdegree
|
|
Temperature Compensation
|
DC12V/24V/36V/48VSYS
|
14.2V-(The highest temperature-25 Cdegree)*0.3
|
|
Output Ripples(peak)
|
DC12V/24V/36V/48VSYS
|
200mV
|
|
Charger voltage accuracy
|
DC12V/24V/36V/48VSYS
|
≤±1.5%
|
|
Discharge characteristic
|
|
Setting Control
|
Controller or PC software
|
|
Max discharge current
|
DC12V/24V/36V/48VSYS
|
100A
|
|
Discharge protection
|
DC12V/24V/36V/48VSYS
|
fuse
|
|
Double-time control
|
DC12V/24V/36V/48VSYS
|
On in morning ,off in morning / On in night ,off in night
|
|
ON / OFF mode
|
DC12V/24V/36V/48VSYS
|
ON / OFF
|
|
PV voltage control
|
DC12V/24V/36V/48VSYS
|
PV voltage on, PV voltage off
|
|
PV voltage / time delay control
|
DC12V/24V/36V/48VSYS
|
PV voltage on, time delay off
|
|
Control ON/OFF mode
|
|
Discharge voltage protection
|
DC12V/24V/36V/48VSYS
|
Set by user
Output off when it under (exceed) setting voltage;
|
|
|
Communication Features
|
|
RS232 communication
|
DC12V/24V/36V/48VSYS
|
Chose COM communication port
|
|
LAN communication
|
DC12V/24V/36V/48VSYS
|
Set IP and Gate address for controller and solar eagle ;
|
|
Then chose TCP communication
|
|
Protection Function
|
|
Input Low Voltage Protection
|
Check the input characteristics
|
|
Input Overvoltage Protection
|
Check the input characteristics
|
|
Temperature Protection
|
95 Cdegree
|
|
Temperature rise protection
|
Above 85 Cdegree,decrease the output power, decrease 3A per degree.
|
|
Other Parameters
|
|
Thermal methods
|
Self-cooling
|
|
Components
|
World brand raw materials. Compliance with EU standards. All rated temperature of electrolytic capacitors not less than 105 Cdegree
|
|
Smell
|
No peculiar smell and toxic substances.
|
|
Environment Protection
|
Meet the 2002/95/EC,
|
|
no cadmium hydride and fluoride
|
|
Physical
|
|
Measurement DxWxH (mm)
|
|
|
N.G(kg)
|
|
|
G.N(kg)
|
|
|
Color
|
Blue, Green, White (or OEM) (optional)
|
|
Safety
|
CE, PSE, FCC, EMC
|
|
EMC
|
EN61000
|
|
Type of Mechanical Protection
|
IP21
|
|
Environment
|
|
Humidity
|
0~90%RH ( no condense)
|
|
Altitude
|
0~3000m
|
|
Operating Temperature
|
-20 Cdegree~ +40 Cdegree
|
|
Storage Temperature
|
-40 Cdegree ~ +75 Cdegree
|
|
Atmospheric Pressure
|
70~106kPa
|
Parts:
NO. Quantity Description
1 1pce Solar controller Blue,Green or White
2 2 pcs hangers(To install the controller on the wall )
3 8 sets Screw (To keep the hangers into the controller )
4 1 pce RJ45 turn to RS232 communication cable
5 1 pce Temperature sensing wire
6 1 pce CD
7 1 pce User manual
